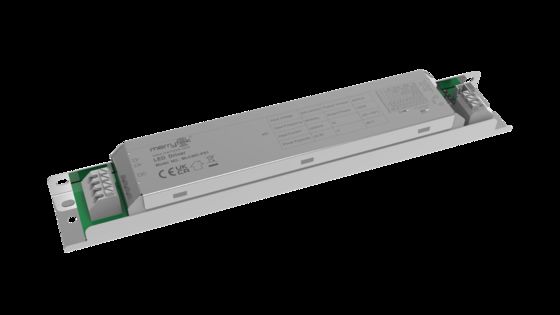

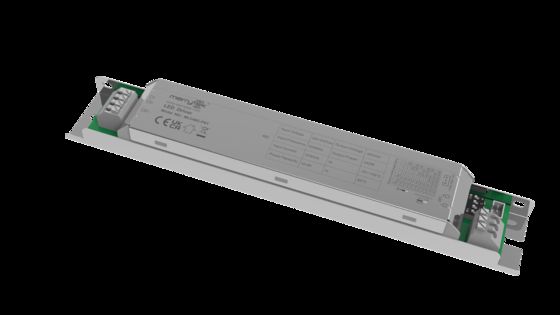

45W Isolated Sensor DIM Led Driver, With PWM Dimming Terminal, 600-1050mA Current

  • 45W Isolated Sensor DIM Led Driver, With PWM Dimming Terminal, 600-1050mA Current
  • 45W Isolated Sensor DIM Led Driver, With PWM Dimming Terminal, 600-1050mA Current
Τόπος καταγωγής Shenzhen, Κίνα
Μάρκα Merrytek
Πιστοποίηση CE、UKCA、SAA
Αριθμό μοντέλου MLC40C-PS1
Ποσότητα παραγγελίας min 100pcs
Τιμή Διαπραγματεύσιμα
Συσκευασία λεπτομέρειες PE Bag clapboard, χαρτοκιβώτιο (k = a)
Χρόνος παράδοσης 1, δείγμα και μικρή παραγγελία: εντός 5 εργάσιμων ημερών από τη λήψη της πληρωμής σας. 2, μαζική παρ
Όροι πληρωμής T/t
Δυνατότητα προσφοράς 10000 τεμ./Μήνα

Επικοινωνήστε μαζί μου για δωρεάν δείγματα και κουπόνια.

WhatsApp:0086 18588475571

WECHAT: 0086 18588475571

Skype: sales10@aixton.com

Εάν έχετε οποιαδήποτε ανησυχία, παρέχουμε τη 24ωρη σε απευθείας σύνδεση βοήθεια.

x
Λεπτομέρειες
Δυνατότητα έντασης 220-240Vac 50Hz/60Hz Δύναμη αναμονής ≤0,5 W (Εξοπλισμός με διαχωριστική κεφαλή ανίχνευσης Merrytek 5,8 Ghz)
Συντελεστής ισχύος ≥0,95 (μέγιστο φορτίο 230 V) Εργασιακό μοντέλο Σταθερό ρεύμα
Φλεγόμενο ≤5% Βαθμολογία IP IP20
Διάρκεια ζωής 5 έτη εγγύηση@Ta 230V πλήρης φόρτισης
Επισημαίνω

45W isolated LED driver

,

PWM dimming sensor driver

,

600-1050mA LED driver
Αφήστε ένα μήνυμα
Περιγραφή προϊόντων
45W Isolated Sensor DIM Led Driver, With PWM Dimming Terminal, 600-1050mA Current
Product Features
  • Isolated two-stage circuit frame, full dimming and flicker-free
  • Support DIP switches to set the current gear
  • Support 12V auxiliary power supply, with sensing split head can achieve integrated sensing function
  • Equip with PWM dimming control port
  • Suitable for various microwave sensors or wireless smart modules
Technical Parameters
Product series MLC40C-PS1
Rated voltage 220-240V AC 50Hz/60Hz
Stand-by power ≤0.5W(Equip with Merrytek 5.8Ghz sensing split head)
Surge 1KV(L/N,EN61000-4-5)
Power factor ≥0.95 (230V Max load)
Input current ≤0.23A @230VAC full load
Inrush current <20A(100us half-current)@230V AC
Working efficiency ≥86% (230V Max load)
Output
Working model CC
Type of load LED
Flick ≤5%
Constant current accuracy Constant current accuracy ±5%
Auxiliary driver parameters 12VDC Current: 100mA Max
No-load output voltage 60VDC Max
Full load power 40W Max
Load current 600mA / 650mA / 700mA / 750mA 800mA / 850mA / 900mA / 950mA 1000mA / 1050mA
Load output voltage range 600mA / 9-42VDC 650mA / 9-42VDC 700mA / 9-42VDC 750mA / 9-42VDC 800mA / 9-42VDC 850mA / 9-42VDC 900mA / 9-42VDC 950mA / /9-42VDC 1000mA / 9-40VDC
Abnormality Protection Requirements
Protection mode Input overvoltage protection | Input no-load protection | Input short circuit protection
Environmental Requirements
Operating temperature Built-in: -25…+50℃
Maximum shell temperature(Tc) 85℃
Storage temperature/humidity -40℃…+80℃ Humidity: ≤85% (non-condensation)
Certificate Standards
Certificate CE,UKCA,SAA
Environmental requirement RoHS2.0, Reach requirement
Safety standards(LVD) EN61347-1, EN61347-2-13
EMC standards EN55015, EN61547, EN61000-3-2, EN61000-3-3
Withstand voltage Primary to secondary: 3.75KVAC Primary to ground :1.5KVAC
IP Rating IP20
Product Category Class I
Others
Wiring method Press terminal, wire diameter:0.5-1.0mm2
Installation Built-in
Package PE bag clapboard, carton(K=A)
Net weight 174±5g
Lifetime 5 years warranty@Ta 230V full load
Split Head Collocation
MC002D 6 MC087D 1 MC087D RC MC131D A&B
MC137D A&B MSA207D MC068D RC MC116D RC
MC116D B1
Product Information
Wiring and function
45W Isolated Sensor DIM Led Driver, With PWM Dimming Terminal, 600-1050mA Current 0 45W Isolated Sensor DIM Led Driver, With PWM Dimming Terminal, 600-1050mA Current 1
Dimension (Unit:mm)
45W Isolated Sensor DIM Led Driver, With PWM Dimming Terminal, 600-1050mA Current 2
Parameter Curve
45W Isolated Sensor DIM Led Driver, With PWM Dimming Terminal, 600-1050mA Current 3 45W Isolated Sensor DIM Led Driver, With PWM Dimming Terminal, 600-1050mA Current 4
Life Time Curve
45W Isolated Sensor DIM Led Driver, With PWM Dimming Terminal, 600-1050mA Current 5
Output Current Setting
Output current Voltage range S1 S2 S3 S4
600mA 9-42V - - - -
650mA 9-42V - - - ON
700mA 9-42V - - ON -
750mA 9-42V - - ON ON
800mA 9-42V - ON - ON
850mA 9-42V - ON ON -
900mA 9-42V - ON ON ON
950mA 9-42V ON ON - ON
1000mA 9-40V ON ON ON -
1050mA 9-38V ON ON ON ON
Initialization

When powered on, it is steady on. When the sensor is configured, it changes according to the status of the sensor.

Default Setting

Adjust the corresponding current gear according to the order or customer demand.

Application Notice
  • Please use this product in accordance with the specifications. Failure may occur if the product is used beyond the use conditions.
  • The product should be installed by a professional electrician. Please turn off the power before installing, wiring, changing the setting of the DIP switches.
  • The load LED string must be connected first, and then turn on the input power, otherwise it may damage the LED string.
  • After the LED drive input is powered off, there will be residual voltage at the output end, which can be maintained for about 3 minutes.
