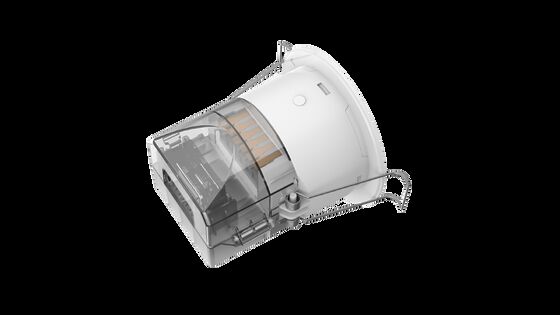

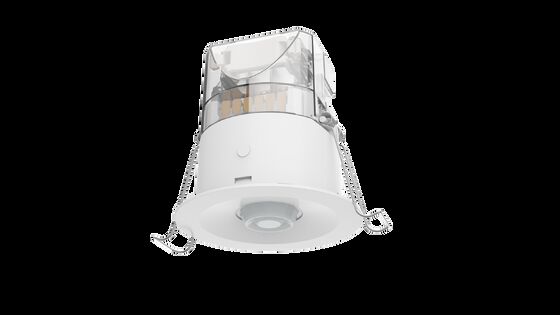

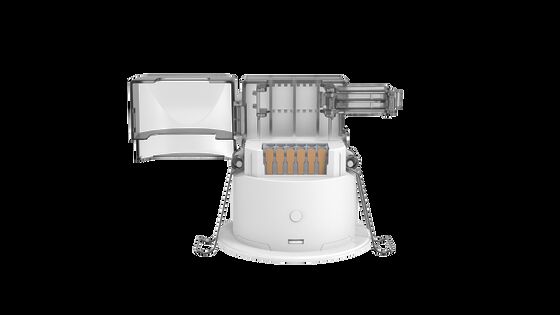

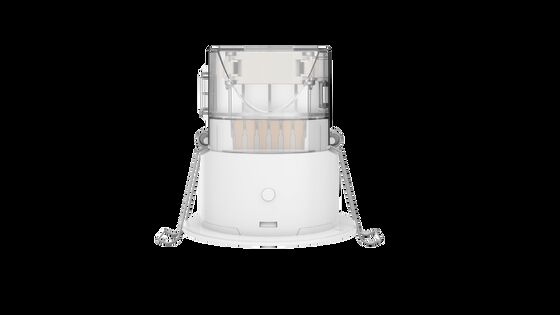

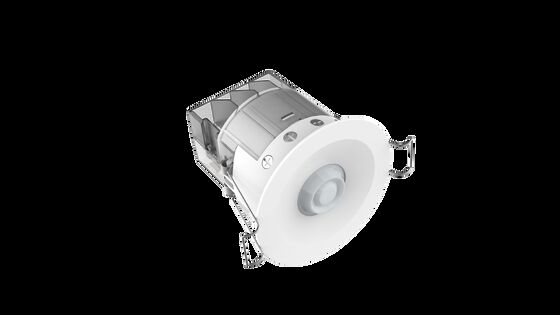

Easy use series dual channel output flush-mounted PIR Occupancy Switches Occupancy detectors and motion detectors
| Τόπος καταγωγής | Κίνα |
|---|---|
| Μάρκα | Merrytek |
| Πιστοποίηση | CE |
| Αριθμό μοντέλου | MSA246S IR A2 |
| Ποσότητα παραγγελίας min | 100 ΤΕΜ |
| Τιμή | Διαπραγματεύσιμα |
| Συσκευασία λεπτομέρειες | Λευκό κουτί + Λευκές ετικέτες κουτιού + Πλακέτο + Καρτόνι ((K=A)) |
| Χρόνος παράδοσης | 1, δείγμα και μικρή παραγγελία: εντός 5 εργάσιμων ημερών από τη λήψη της πληρωμής σας. 2, μαζική παρ |
| Όροι πληρωμής | T/T |
| Δυνατότητα προσφοράς | 10,000pcs ανά μήνα |
Επικοινωνήστε μαζί μου για δωρεάν δείγματα και κουπόνια.
WhatsApp:0086 18588475571
WECHAT: 0086 18588475571
Skype: sales10@aixton.com
Εάν έχετε οποιαδήποτε ανησυχία, παρέχουμε τη 24ωρη σε απευθείας σύνδεση βοήθεια.
xΛεπτομέρειες
| Τάση εισόδου | 100-240 VAC | Ρεύμα λειτουργίας | 20mA MAX. |
|---|---|---|---|
| Κατανάλωση ρεύματος | ≤0,5W | Λειτουργία | Λειτουργία ON/OFF + έξοδος ξηρής επαφής |
| Διαθέσιμος | Ανιχνευτές κατάληψης και ανιχνευτές κίνησης | Ύψος τοποθέτησης | 2.54m |
| Εγκατάσταση | Πυροσβεστικά | Μέγεθος κοπής | Φ65mm |
| Επισημαίνω | dual channel PIR occupancy switch,flush-mounted motion detector,PIR occupancy sensor with dual output |
||
Περιγραφή προϊόντων
Easy Use Series Dual Channel Output Flush-Mounted PIR Occupancy Switches
Professional-grade PIR occupancy detectors and motion detectors with dual channel output capabilities for industrial and commercial applications.
Key Features
- PIR motion detection technology
- Dual channel output with ON/OFF function or dry contact output
- Daylight threshold working mode with learning function
- Adjustable detection area, hold time, and daylight threshold via remote control or potentiometer
- Maximum detection range: 10-14m diameter
- Push terminal for manual load control
- Full-automatic or semi-automatic operation modes
- Multiple sensor synchronization via parallel S terminal wiring
- Advanced IQ mode for intelligent operation
Technical Specifications
| Input/Output Parameters | |
|---|---|
| Input Voltage | 100-240V AC |
| Rated Voltage | 230V AC |
| Power Consumption | 20mA max |
| Output Signal | ≤0.5W @230V DC |
| Working Mode | ON/OFF + Dry Contact |
| Surge Protection | 2KV(L/N, EN61000-4-5) |
| Surge Capacity | 30A (50% Ipeak, twidth=500us, 230Vac full load, cold start) |
| Load Capacity | Channel one: 1200W resistive or 600W inductive; Channel two: dry contact, 5A 24Vdc max |
| Sensor Parameters | |
| Function | PIR Motion Detection + Daylight Sensor |
| Detection Area | 100%/75%/50%/25% (adjustable) |
| Hold Time | Channel one: 5s/30s/1min/5min/10min/30min Channel two: Test 2s/30s/1min/3min/5min/10min/20min/30min |
| Daylight Sensor | 5Lux/15Lux/30Lux/50Lux/100Lux/150Lux/Disable |
| Detection Range | 5-6m tangential at 3m mounting height |
| Mounting Height | 2.5-4m (typical: 3m) |
Dimensions & Function
Wiring Diagram
Important Wiring Notes:
- LN is AC input terminal, L'N is AC output terminal - ensure correct wiring sequence
- Single sensor output limits: resistive loads ≤1200W, capacitive loads ≤800W
- For multiple loads, use AC contactor or solid-state relay to prevent sensor damage
- S synchronization port must NOT be connected to N line (neutral wire)
Initialization & Default Settings
When powered on, the sensor indicator illuminates for 35 seconds for initialization. After this period, sensor parameters can be configured via potentiometer or remote control.
Factory Default Settings:
Detection Area: 100% | Hold Time: 2s | Daylight Sensor: Disable | Daylight Priority: Disable | LED Indicator: ON
Detection Radiation Pattern
Potentiometer Settings
Detection Area
| Gear | Percentage |
|---|---|
| 1 | 25% |
| 2 | 50% |
| 3 | 75% |
| 4 | 100% |
Hold Time
| Gear | Hold Time |
|---|---|
| 1 | Test 2s |
| 2 | 30s |
| 3 | 1min |
| 4 | 5min |
| 5 | 10min |
| 6 | 30min |
| 7 | Pulse Mode |
| 8 | IQ Mode |
Daylight Threshold
| Gear | Threshold Value |
|---|---|
| 1 | 5lux |
| 2 | 15lux |
| 3 | 30lux |
| 4 | 50lux |
| 5 | 100lux |
| 6 | 150lux |
| 7 | Disable |
Remote Control MH10
Application Precautions
- Installation must be performed by qualified electrician with power disconnected
- Optimal installation height: 3m - not suitable for outdoor use
- Avoid locations with temperature/airflow changes to prevent false triggering
- Ensure detection range is unobstructed by furniture, screens, or plants
- No reflective objects should be directly in front of sensor
- Keep minimum 2m distance from electromagnetic radiation sources (Wi-Fi routers, cameras, etc.)
- Sensing distance may vary based on installation height and ambient temperature
Disclaimer
Due to product technology complexity and application environment differences, complete accuracy cannot be guaranteed. Specifications are for reference only. We reserve the right to modify product specifications without notification and make no legal commitments or guarantees.
For more information, please contact our sales representative for detailed specifications.
