35mm cut-out PIR Ceiling Mount Corridor Occupancy Sensor with RS-485 protocol

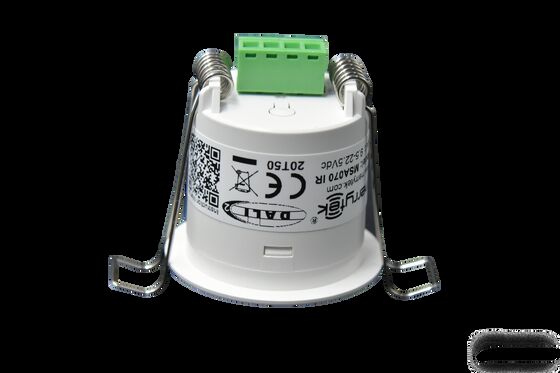

  • 35mm cut-out PIR Ceiling Mount Corridor Occupancy Sensor with RS-485 protocol

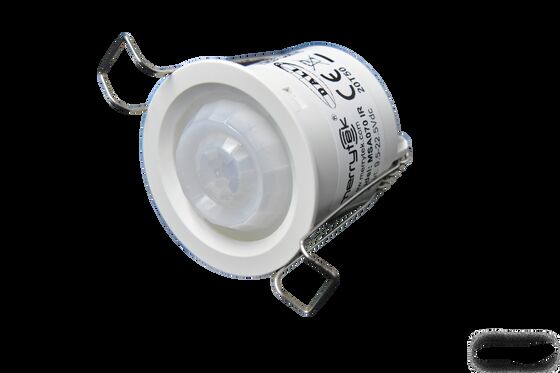

  • 35mm cut-out PIR Ceiling Mount Corridor Occupancy Sensor with RS-485 protocol

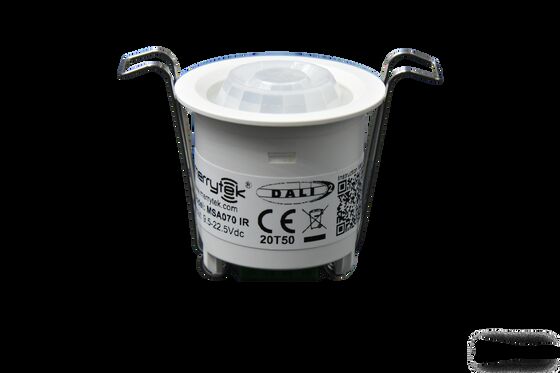

  • 35mm cut-out PIR Ceiling Mount Corridor Occupancy Sensor with RS-485 protocol

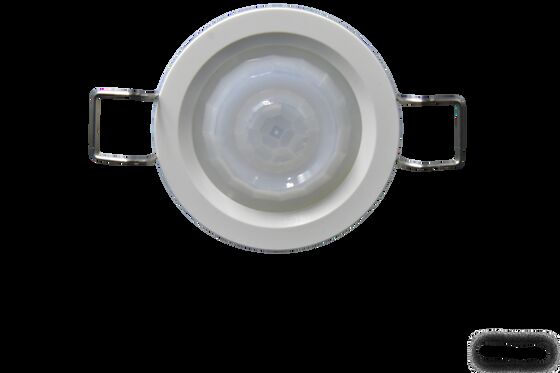

  • 35mm cut-out PIR Ceiling Mount Corridor Occupancy Sensor with RS-485 protocol
Τόπος καταγωγής Κίνα
Μάρκα Merrytek
Πιστοποίηση CE
Αριθμό μοντέλου MSA070D IR 485
Ποσότητα παραγγελίας min 100 τεμ
Τιμή Διαπραγματεύσιμα
Συσκευασία λεπτομέρειες Λευκό κουτί + Λευκές ετικέτες κουτιού + Πλακέτο + Καρτόνι ((K=A))
Χρόνος παράδοσης 1, δείγμα και μικρή παραγγελία: εντός 5 εργάσιμων ημερών από τη λήψη της πληρωμής σας. 2, μαζική παρ
Όροι πληρωμής T/T
Δυνατότητα προσφοράς 10,000pcs ανά μήνα
Λεπτομέρειες
Τάση εισόδου 12-24VDC Ρεύμα λειτουργίας 20mA MAX.
Κατανάλωση ρεύματος ≤0,5W Λειτουργία RS485
Διαθέσιμος Ανίχνευση κίνησης, αισθητήρας ημερήσιου φωτός Ύψος τοποθέτησης 2.54m
Εγκατάσταση Πυροσβεστικά μέγεθος κοπής Φ35 mm
Επισημαίνω

35mm ceiling PIR occupancy sensor

,

RS-485 corridor motion sensor

,

ceiling mount PIR sensor
Αφήστε ένα μήνυμα
Περιγραφή προϊόντων
35mm Cut-Out PIR Ceiling Mount Corridor Occupancy Sensor with RS-485 Protocol
Compact 35mm cut-out PIR ceiling mount occupancy sensor featuring RS-485 protocol communication, designed specifically for corridor and toilet motion detection applications.
Key Features
  • Advanced PIR motion detection technology
  • Super mini case with planar Fresnel lens
  • RS485 protocol output for system integration
  • Ambient light detection capability
  • Configurable daylight threshold and reporting modes
  • Maximum detection range: 8-10 meters diameter
  • Ideal for hallway and restroom applications
  • Remote configuration of detection area, hold time, and device ID
  • Concealed, recessed installation design
  • Ultra-small size for seamless ceiling integration
Technical Specifications
Input/Output Parameters
Input Voltage 12-24V DC
Rated Voltage 12/24V DC
Working Current 20mA maximum
Power Consumption ≤0.5W @12/24V DC
Output Signal RS485
Sensor Parameters
Function PIR motion detection + daylight sensor
Detection Area MH18 remote/RS485 setting: 100%/75%/50%/25%
Hold Time MH18 remote/RS485 setting: 2s/30s/1min/3min/5min/10min/30min
Daylight Sensor Threshold MH18 remote/RS485 setting: 5lux/15lux/30lux/50lux/100lux/150lux/Disable
Radius Detection Range Tangential moving at 3m height: 4-5m @25℃ (radial moving detection range shorter)
Remote Control Available
Mounting Height 2.5-4m (typical: 3m)
Application Environment
Drill Hole Φ35mm
Working Temperature -25℃ to +50℃ (detection range varies with temperature)
Storage Temperature -40℃ to +80℃
Warranty 3 years (for product quality issues in indoor applications)
Wire Standard Wire diameter: 0.2-2.5mm, Stripping length: 7-8mm
Certification Standards
Certificate CE Compliant
Environmental Requirements RoHS Compliant
IP Rating IP20
Product Dimensions
35mm cut-out PIR Ceiling Mount Corridor Occupancy Sensor with RS-485 protocol 0
Wiring Diagram
35mm cut-out PIR Ceiling Mount Corridor Occupancy Sensor with RS-485 protocol 1 35mm cut-out PIR Ceiling Mount Corridor Occupancy Sensor with RS-485 protocol 2
Detection Radiation Pattern
35mm cut-out PIR Ceiling Mount Corridor Occupancy Sensor with RS-485 protocol 3
Detection Signal Information
The sensor detects human moving signals within the detection area, specifically optimized for significant human movement such as walking.
Remote Control (MH18)
35mm cut-out PIR Ceiling Mount Corridor Occupancy Sensor with RS-485 protocol 4
RS485 Protocol Specifications
Baud Rate 9600
Data Bit 8
Stop Bit 1
Communication Data Type HEX TX/RX
Data Command Interval >210ms
Protocol Command Structure
DATA0 DATA1 DATA2 DATA3 DATA4 DATA5/DATA6/DATA7 DATA8
Frame Header ID High Bit ID Low Bit Data Length Function Value Check Code
Protocol Commands Reference
Command Function Data Range R/W Default Value
0x00 Read Command Value - w -
0x03 Presence/Absence Report 1-2 w/r 01
0x05 Detection Area Setting 0-100 w/r 100%
0x07 Blocking Time 0-FFFFFF w 0
0x08 Indicator Activation 0-1 w/r 01
0x09 Daylight Value Report 0-1200lux r -
0x0A Daylight Difference Value Setting 10-100 w/r 10Lux
0x0D Hold Time Setting 3-7200 w/r 30s
0x17 Firmware Version 0.0.0-100.0.0 r Current Version
0x18 Setting Device ID 0x0000-0xFFFF w/r 0xFFFF
0x20 Setting Daylight Compensation 0x01-0x64 w/r 0x0a
0x21 Edit Device ID 0-1 w 0x00
0x22 Report or Reading Mode 0-1 w/r 01
0x23 Status Flip 1 w 1
0x25 Daylight Threshold Function 0-1200lux,65535 w/r 65535
0x26 Sensor Function Activation 0-1 w/r 0
0x30 Recover Factory Setting 1 w -
Installation Guidelines
  • Installation must be performed by a qualified electrician with power disconnected
  • Maximum 4m height for indoor use only, away from temperature-sensitive areas
  • Ensure no large objects obstruct the detection area (sensor cannot detect through objects)
  • Avoid placement near strong-reflecting objects, wifi routers, or microwave ovens
  • Detection range optimized for 25℃ environment - performance varies with temperature
  • Detection optimized for tangential movement - radial movement detection is shorter
Product Disclaimer
Due to product technology complexity and application environment differences, this specification serves as reference only. We reserve the right to modify product specifications without notification and make no legal commitments or guarantees. Users are encouraged to supplement or modify specification contents based on their product experience.
For detailed technical specifications and protocol documentation, please consult the manufacturer directly.
