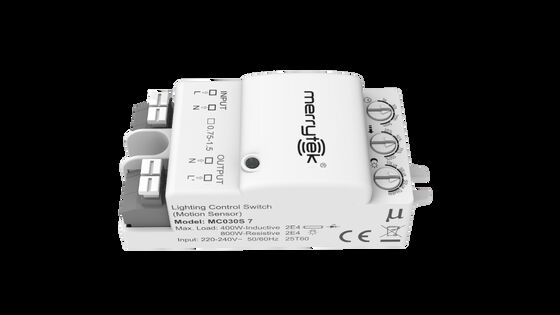

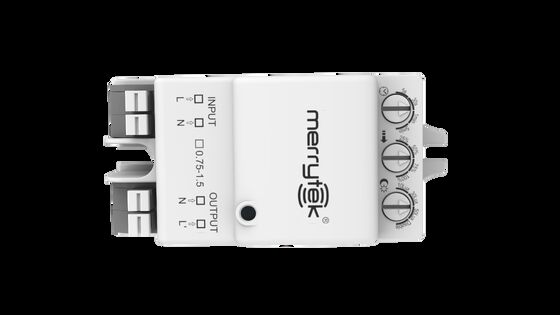

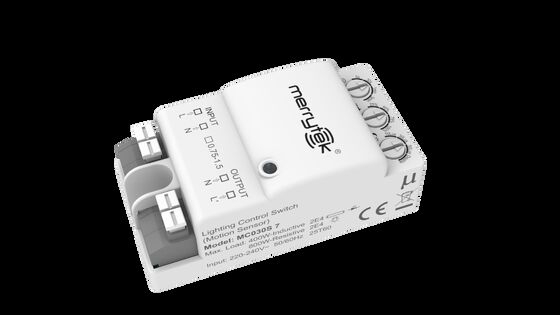

Microwave ON/OFF Motion Sensor, Rotary Switch Setting, With Low Stand-by Power

  • Microwave ON/OFF Motion Sensor, Rotary Switch Setting, With Low Stand-by Power
  • Microwave ON/OFF Motion Sensor, Rotary Switch Setting, With Low Stand-by Power
  • Microwave ON/OFF Motion Sensor, Rotary Switch Setting, With Low Stand-by Power
Τόπος καταγωγής Shenzhen, Κίνα
Μάρκα Merrytek
Πιστοποίηση CE, RED
Αριθμό μοντέλου MC030S 7
Ποσότητα παραγγελίας min 100 τεμ
Τιμή Διαπραγματεύσιμα
Συσκευασία λεπτομέρειες Σάκος με φυσαλίδες + χαρτόνι + χαρτόνι ((K=A)
Χρόνος παράδοσης 1, Δείγμα και μικρή παραγγελία: Μέσα σε 5 εργάσιμες ημέρες μετά την παραλαβή της πληρωμής σας. 2, Μι
Όροι πληρωμής T/T
Δυνατότητα προσφοράς 10000 ΤΕΜ/Μήνα

Επικοινωνήστε μαζί μου για δωρεάν δείγματα και κουπόνια.

WhatsApp:0086 18588475571

WECHAT: 0086 18588475571

Skype: sales10@aixton.com

Εάν έχετε οποιαδήποτε ανησυχία, παρέχουμε τη 24ωρη σε απευθείας σύνδεση βοήθεια.

x
Λεπτομέρειες
Εύρος τάσης 110-240VAC 50/60Hz Έλεγχος εξόδου On-off
Συχνότητα λειτουργίας 50,8 GHz ± 75MHz, ζώνη κυμάτων ISM. Ύψος τοποθέτησης 3 m (τοποθέτηση οροφής), 6 m Max)
Θερμοκρασία λειτουργίας -25~60°C Διάρκεια ζωής Εγγύηση 5 ετών @ta
Επισημαίνω

microwave motion sensor with rotary switch

,

low power microwave motion sensor

,

microwave ON OFF motion sensor
Αφήστε ένα μήνυμα
Περιγραφή προϊόντων
Microwave ON/OFF Motion Sensor, Rotary Switch Setting, With Low Stand-by Power
Product Features
  • Conforms to new ERP standards with low stand-by power
  • 5.8GHz microwave license-free ISM wave band; bulk orders compliant with RED & TUV approval
  • Compact size design, can be built into most light fixtures
  • Simple operation: adjust rotary switches to change detection area, hold time, daylight sensor and other parameters
  • Input and output terminals for convenient connection
  • Five year warranty
Technical Parameters
Input
Voltage Range 110-240VAC 50/60Hz
Stand-by Power ≤0.1W
Surge Test L--N: 4kV
Output
Output Control ON-OFF
Load Capacity 200W@230Vac(Inductive/LED); 400W@230Vac(Resistive)
400W@230Vac(Inductive/LED); 800W@230Vac(Resistive)
Max. Surge Capacity 30A (50% Ipeak, twidth =500us, 230Vac full load, cold start)
60A (50% Ipeak, twidth =200us, 230Vac, full load, cold start)
Sensor Parameters
Operating Frequency 5.8 GHz ±75MHz, ISM wave band
Transmitting Power 1mW Max.
Hold Time 5s/30s/1min/5min by rotary switch
Detection Area 100%/75%/50%/25% by rotary switch
Daylight Sensor 10Lux/30Lux/50Lux/Disable (Diffusion) by rotary switch
Detecting Radius Ceiling installation 3m height: 1m/s ≥ 2.5m, 0.3m/s ≥ 3.5m
Test condition: Product setting 100% sensitivity, 60㎡ indoor open space
Mounting Height 3m (ceiling mounting), 6m Max
Environment
Operating Temperature -25~60°C
Storage Temperature -40℃~80℃, Humidity: ≤85%(Non-condensing)
Maximum Shell Temperature (Tc) 80℃
Certificate Standard
Certificate CE, RED
Environmental Requirement Compliant to RoHS 2.0, Reach
IP Rating IP20
Product Category Class II
Other
Wiring Press-in type terminal block, wiring 0.75-1.5 mm²
Installation Built-in
Package Bubble bag + Clapboard + Carton(K=A)
Net Weight 37.8±3g
Lifetime 5 years warranty @Ta
Functions
✓ ON-OFF Function Setting daylight sensor to "disable" or ambient brightness is lower than the preset daylight sensor value, when detecting moving signals sensor starts working and light will turn on. When hold time ends, light will turn off.
○ 2-step Dimming N/A
○ 3-step Dimming N/A
○ Daylight Harvesting N/A
○ Daylight Priority N/A
○ High-low Sensitivity N/A
○ Grouping N/A
Product Information
Note: The sensor is designed to connect one load only. Connecting more than one load may damage the sensor.
Detection Range
Microwave ON/OFF Motion Sensor, Rotary Switch Setting, With Low Stand-by Power 0
DIP Switch Setting
Initialization

After power on, the sensor automatically turns on light to 100% brightness and turns off light after 10 seconds. During initialization, sensor is not able to detect movement.

Default Setting

Sensitivity: 100%, Hold time: 5s, Daylight sensor: Disable

Application Notice
  • Sensor should be installed by a professional electrician. Please turn off power before installing, wiring, or setting the DIP switches.
  • Microwaves cannot penetrate metal. Do not place product in a closed or a half-closed metal lamp. Neither metal nor glass is allowed to cover above the product. If antenna needs to pass through the metal plate, please ensure that the top of sensor is close to the metal plate.
  • The installation spacing between sensors is recommended to be greater than 2m. Keep it away from wireless devices such as switches and routers, and the installation spacing between sensors and routers is recommended to be greater than 2m. The antenna surface of the microwave sensor should be away from the input AC and output DC to avoid low/high frequency signals affecting the normal operation of the microwave sensor antenna.
  • Sensitivity area is related to moving speed of objects, size of moving objects, mounting height, mounting angle, working environment, reflecting materials and etc. Given detecting area is typical value that was measured by 165cm high testers in an indoor open environment.
  • This model is suitable for ceiling installation. If wall installation is used, the microwave sensor sensing detection area is greatly increased, and it may cause the phenomenon of microwave penetrate wall or the light not going out. So please adjust the sensitivity to 10%. If the sensitivity 10% cannot be used, please avoid the wall installation or ask the manufacturer for technical support.
  • The daylight thresholds are measured on a sunny day without shadow and in an ambient light diffuse reflection status. Different environment and climate cause different brightness values that daylight sensor measures.
  • Sensor should not be covered or hidden by metal, PCB, LED tray etc. The spacing between the sensor antenna and surrounding materials should be greater than 5mm. There should be no metal or PCB tracks near the sensor antenna, above or below it. The recommended thickness of cover is 2mm, and keep the spacing between the sensor antenna and cover is greater than 3.2mm.
  • Vibration signals will be regarded as moving signals to trigger sensor. Installing sensor should be away from the object that vibrates for a long time, such as large metal equipment, pipes, air conditioning outlets, exhaust vents, smoke exhaust machine ports, shaking fans, etc. Pets in detecting area may cause false trigger.
  • The antenna surface of microwave module should be away from input AC, output DC, rectifier bridge, transformer, switch tube and other high-power devices to avoid high frequency signals affecting the normal operation of microwave sensor's antenna.
  • Sensor is for indoor use only. The waterproof effect for outdoor or half-outdoor use will be affected. Wind, rain, and moving objects may cause false triggering. When the sensor is installed in a metal lamp, a metal reflective surface or a small enclosed environment, the microwave will be reflected many times and cause false triggering, please reduce the sensitivity or ask the manufacturer for technical support.
  • When ambient temperature is over 80°C, over temperature protection may be triggered (automatic recovery after cooling).
  • For the new installation environment, it is recommended to test 5pcs samples before installation.
